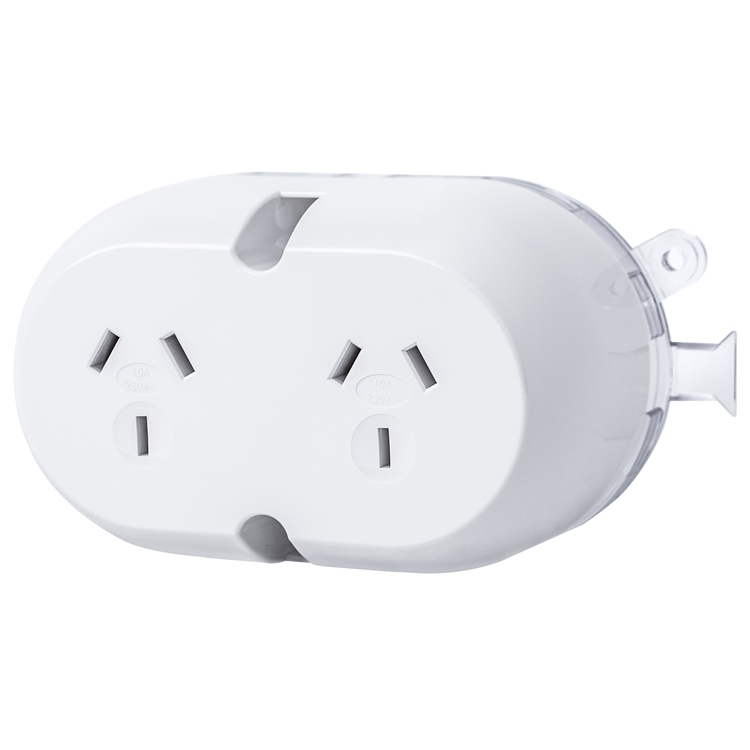

These back-wired Surface Sockets have a high impact white plastic body and are approved to all relevant Australian Standards. Covered by the Voltex Lifetime warranty. The SS2 has four large terminals on the backing plate for ease of wiring. Earth and Active terminals are color-coded, and the Loop terminal is barred for normal applications. A clear mounting bracket is also supplied as standard, making installation easy and providing a firm, secure base which the white body will clip into.
Suitable for use with:
- Downlights
- Fans
- Range hoods
- all other appliances with 3 pin plug leads.
- Volts: 250V
- Amp: 10A
- Pin No: 3 Flat Pin (x2)
- Dimensions: 116mm (W) x 70mm (D) x 56mm (H)
- Terminals: 4 Terminals which accommodate 4 x 2.5mm² cables
- Mounting Centres: 122mm
- Mounting: Direct
- Approval No: V1442
