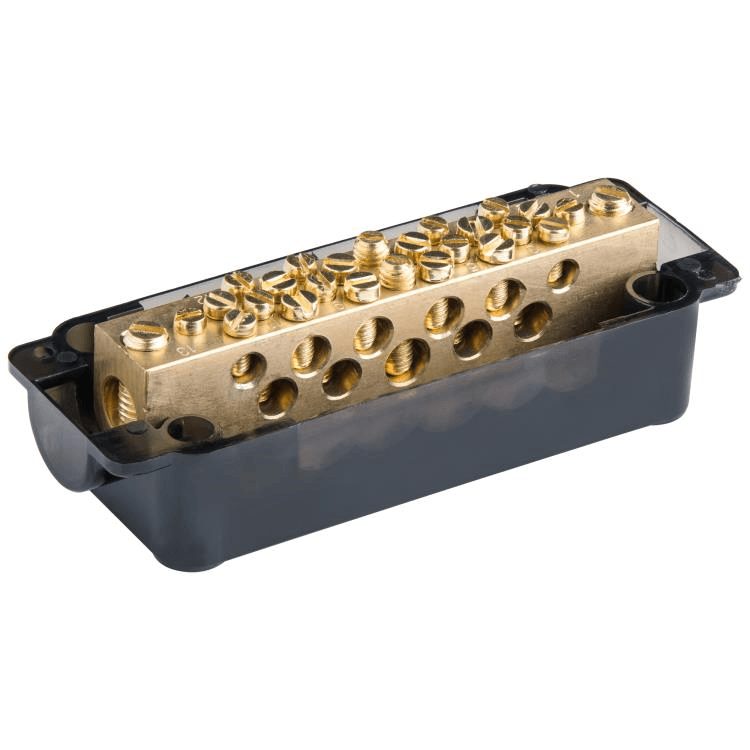

These Black High current links are rated to 165A at 500V. There are 13 screw terminals, each with 2 screws to ensure secure cable termination. The maximum cable size is 50mm2.
Complies with AS/NZS 60269
Voltage | 500V AC |
Amp | 165A |
Number of Holes | 13 |
Max. Cable Sizes | 2 x 50mm2, 1 x 35mm2, 8 x 25mm2, 2 x 10mm2 |
