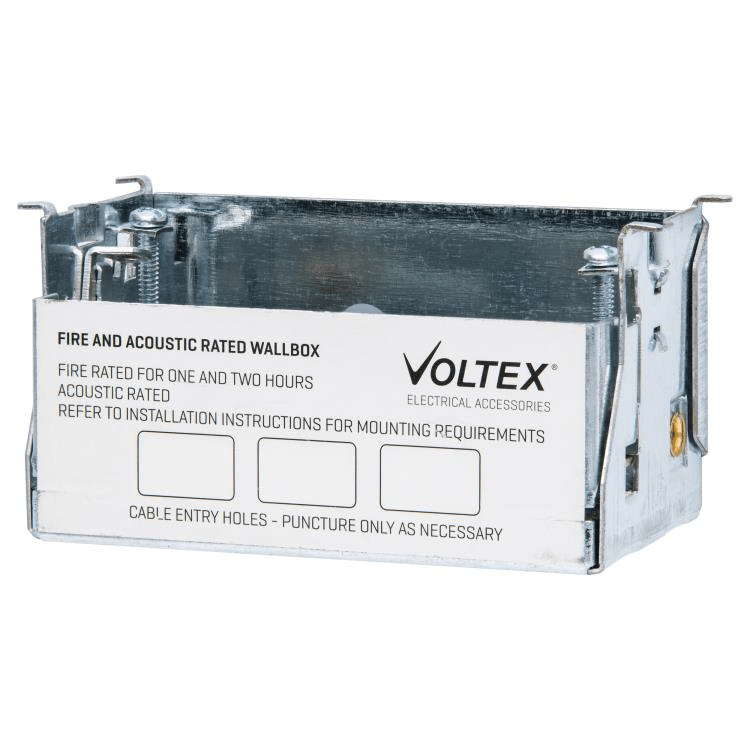

The Voltex Fire Rated Wall Box is designed for mounting switches and outlets in walls that have a specified Fire Rating.
- Fully compliant to Australian Standards.
- Tested to 1 and 2 hour Fire Rating in single and back-to-back installations.
- Comes complete with intumescent pads and acoustic seal.
- Brass earth connector attached to the inside of each box
- Suitable for Voltex Shadowline
Product Code | V157 |
Australian Standard | AS 1530.4-2005 |
Fire Rating | FRL -/60/60 and -/120/120 |
Acoustic rating |
Rw48 * tested in accordance with AS1191-2002 and AS/NZS ISO 717-1. *Note: Test based on 1 sided wall as per test requirements. |
Mounting Centres | 84mm (Adjustable Vertically) |
Material | 0.9mm Galvanised Steel |
Dimensions | 95mm (W) x 52mm (H) x 50mm (D) |
Cable Entry Holes | 3 in top. 2 x Knock outs in the back. |
