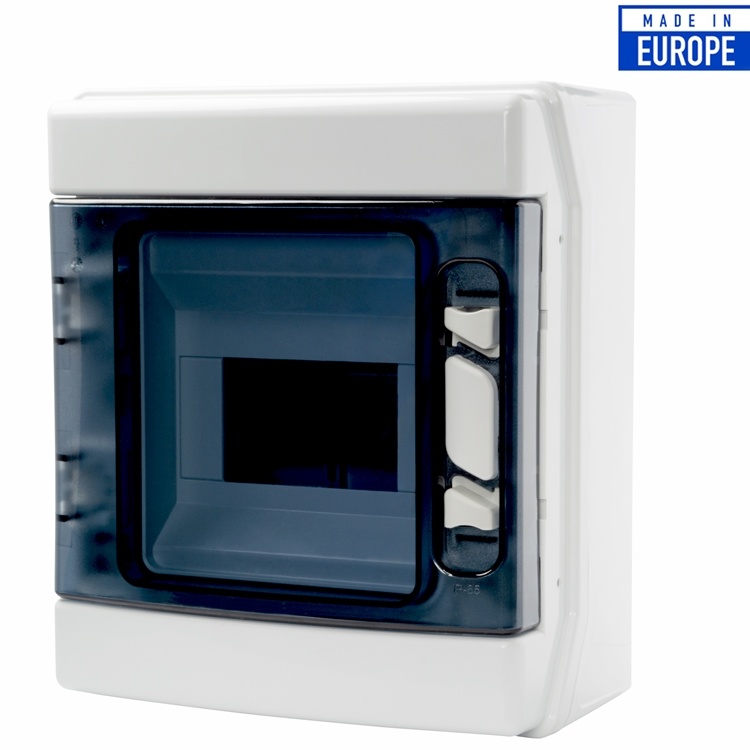

These IP65 distribution boxes are made from halogen free long-lasting thermoplastic material of the highest quality, with excellent UV resistance. They have a large internal space for wiring and modular capacity from 6 up to 36 modules. Designed for internal and external use where a high degree of protection is required.

Overall Dimensions: 202mm (W) x 231mm (H) x 113mm (D)

• Body is made from ABS material
• Protection degree: IP65
• Impact resistance: IK08
• Resistance to glow wire: 650ºC
• Ball pressure test: 70ºC
• Range of temperature under normal conditions: -25ºC / +40ºC
• Maximum operating voltage: 1000VAC / 1500VDC
• Current Rating: 125A
• Class II

Materials (halogen free):

• Case and frame opaque in ABS RAL 7035
• Smoked transparent window in polycarbonate

Case

• Reinforced strip which gives better rigidity
• Double height case which offer more internal space for wiring and fitting switchgear
• Pre-moulded cable entries for M40, M32, M25 & M20
• Case grooves for mounting plates and fixing accessories
• Sealed screws in four points for easy installation
• Removable chassis for models with two or more rows

Window

• Reversible window with horizontal 180º opening
• Smoked transparent window which provides UV protection
• Locking Key accessory available

Overall Dimensions: 202mm (W) x 231mm (H) x 113mm (D)
