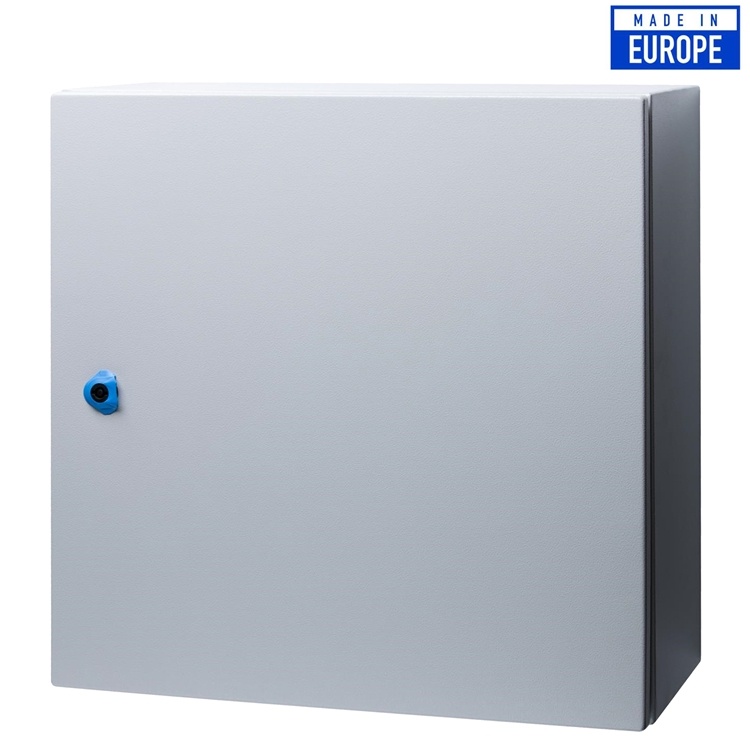

![MSE505020 Voltex Mild Steel Enclosure 500mm H x 500mm W x 200mm D IP66 IK10](images/spacer.gif)
Ideal for housing electrical or electronic switchgear, control gear and equipment necessary to supply, distribute and transform electricity. Recommended for use in environments requiring a high degree of protection against dust, splashes and impacts.
- Made with materials of the highest quality.
- Cabinet made with cold-rolled steel.
- Has 2mm galvanised steel mounting plate. 430mm high x 450mm wide.
- Coated with hardened grey RAL 7035 polyester.
- Reversible door for maximum flexibility in installation.
- Injected polyurethane sealing gasket on door & cable entry.
- Coated with hardened RAL 7035 polyester paint, embossed, 80-120 µ, with UV protection.
- High IP Protection of IP66
- Superior Impact Strength of IK10
Not suitable for use near coastal areas or in higher weathering locations- we suggest use of Stainless steel or "GRP" type enclosures in these areas.
Height | 500mm |
Width | 500mm |
Depth | 200mm |
Cable Entry Dimensions | 140mm*300mm |
No of Locks | 2 |
IP Rating | IP66 |
Impact Rating | IK10 |
Corrosion Resistance | C4-M |
Material | Cold-rolled Steel |
Coating | Hardened RAL 7035 Polyester Paint, embossed, 80-120, with UV protection |
Ambient Temperature Range | (-25ºC) - (+40ºC) |
Maximum Operating Voltage | 1000 V AC |
Maximum Temperature for Sealing Gasket | 80ºC |
Maximum Temperature for Polyester Paint | 125ºC |
Gasket | Injected Polyurethane Sealing Gasket |
