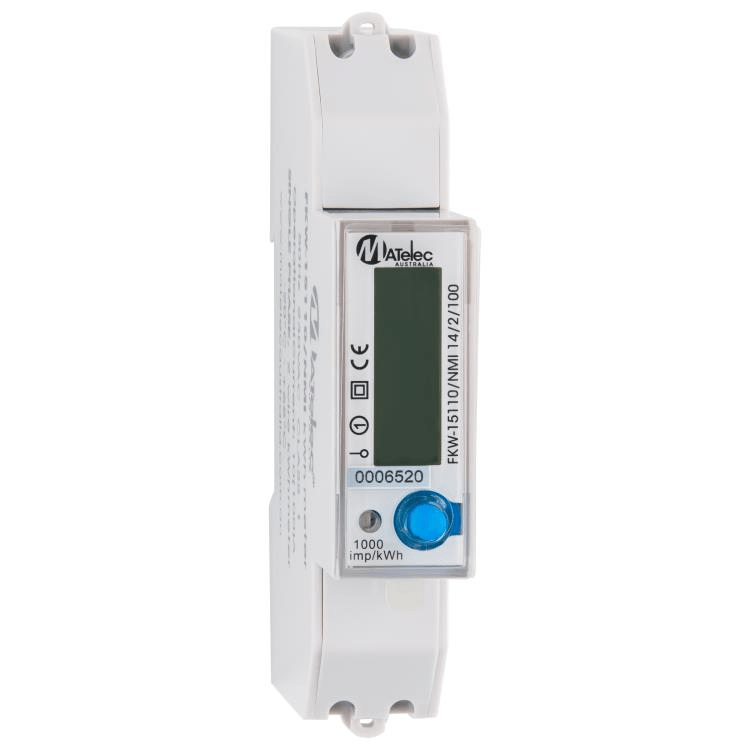

A Single Phase Kilowatt Hour Meter with LCD Display.
NMI Approved for metering.
Suitable for use in caravan parks, units / flats etc.
One module wide DIN Rail Mounted.
Direct Electronic 0-100A - Single Phase
Not suitable for solar installations (where export/import metering is required).
Recommended to be mounted in an enclosure (for suitable shrouding of connecting cables.)
Product Code | FKW-15110/NMI |
Accuracy Class | 1 |
Maximum Rated Current | 100A |
Nominal Voltage | 230Vac |
Operational Current Range | 0.25A - 100A |
Over Current Withstand | 1000A for 0.01s |
Operational Frequency Range | 50-60Hz |
Internal Power Consumption | <0.4W / 8VA |
Test Output Flash Rate | 1000 impulses per kWh |
Power Supply Indicator | Mains power ON |
Consumption Indicator | Flashing on load |
Display | Backlit Blue LCD |
Maximum Cable Capacity | 25mm2 (Neutral 2.5mm2) |
Operating Temperature | -20º C - +55º C |
Operating Humidity | < 95% |
International Standard | IEC62052-11, IEC62053-21 |
Warranty | One year |
Backup Battery | 3.6V Lithium |
Housing Material | Fire Resistant ABS |
Weatherproof Rating | IP51 |
NMI Approved | Yes |
Dimensions | 90mm (H) x 18mm (W) x 72mm (D) - 1 Module |
