The Voltex Classic range of power outlets has been designed for ease of installation.
- Exceeds all relevant Australian & New Zealand Standards
- 2 USB fast charging ports, Total 4.2A output
- Standard Gloss Finish.
Mounting Blocks:
- Fits 34mm standard or straight sided mounting blocks VMB34 or VMB34S (snap off top rear mounting tab)
- Fits 2 x 20mm straight sided mounting block VMB20 (Stack 2 x VMB20 together. Screw back mounting blocks using corner mounting holes)
- Note: Does not fit VMB16 or DIMB mounting blocks
NB: If installed on external cavity wall, or where moisture/contaminants may be present, an SBC shroud must be used to protect the electronics.
Shadowline version also available here

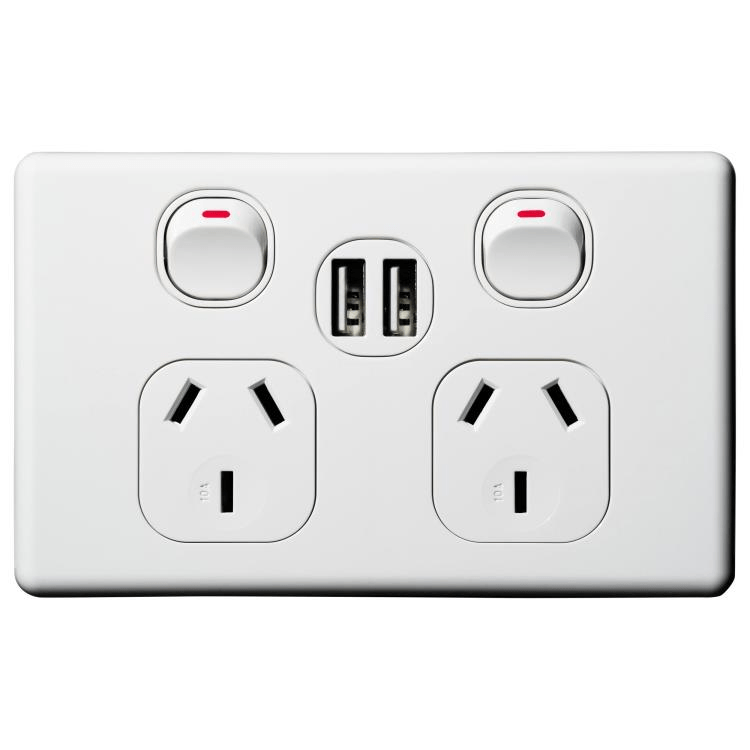

Double socket outlet with individual single pole rocker switches - shallow plate
Dimensions of components protruding into the wall: 50mm height x 73mm width x 34mm depth
Mounting Centre | 84mm |
Plate Thickness | 13mm |
Recess Depth | 34mm |
Plate size | 118mm (W) x 73mm (H) x 47mm (D) |
USB Output | 5VDC, 2x2.1A (Max 4.2A) |
Rated Voltage | 250V 10AC |
Terminals Suit | 4 x 2.5mm2 cable |
Compliance | AS/NZS 3112 AS/NZS 61558.2.16 |
