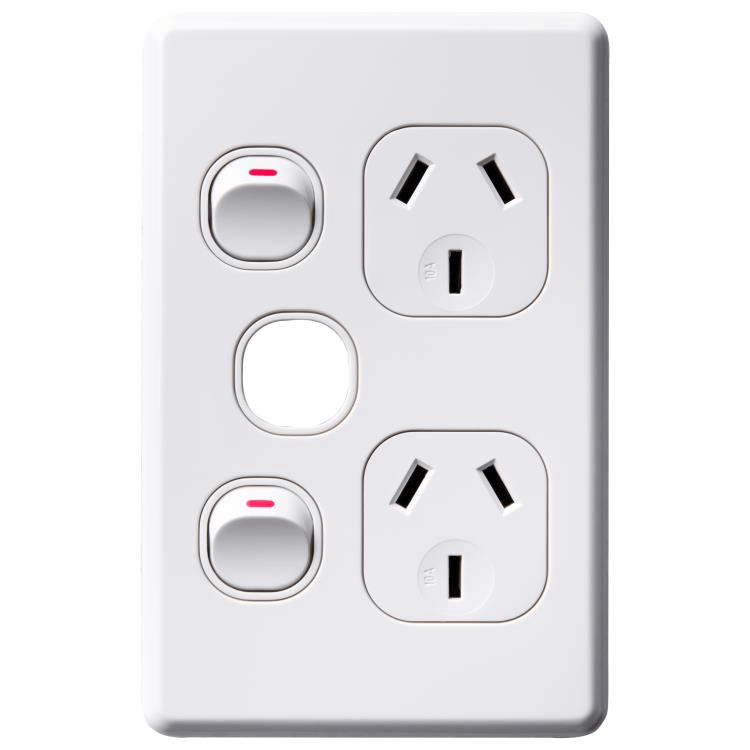

![SLPP2VXWM Voltex Shadowline Vertical Double Power Outlet 250V 10A with Extra Switch Provision](images/spacer.gif)
The Voltex Shadowline range of power outlets has been designed for ease of installation. With a straight top edge for alignment, cutout template provided, large colour coded terminals and captive screws.
- Slim 4.7mm thickness - Extra rigidity to ensure they stay flat on the wall without unnecessary extra installation time.
- Exceeds all relevant Australian & New Zealand Standards
- Multiple oval shaped mounting holes in the plate for flexibility when mounting.
- Extra Switch screwed output terminal is internally looped to supply from GPO circuit
- Standard Gloss Finish.
- Double socket outlet with Extra Switch - shallow plate
Mounting centre | 84mm |
Plate Thickness | 4.7mm |
Plate size | 115mm (W) x 74mm (H) |
Rated Voltage | 250V 10AC |
Terminals Suit | 4 x 2.5mm² cable |
Compliance | AS/NZS 3112 AS/NZS 3133 AS/NZS 3100 |
