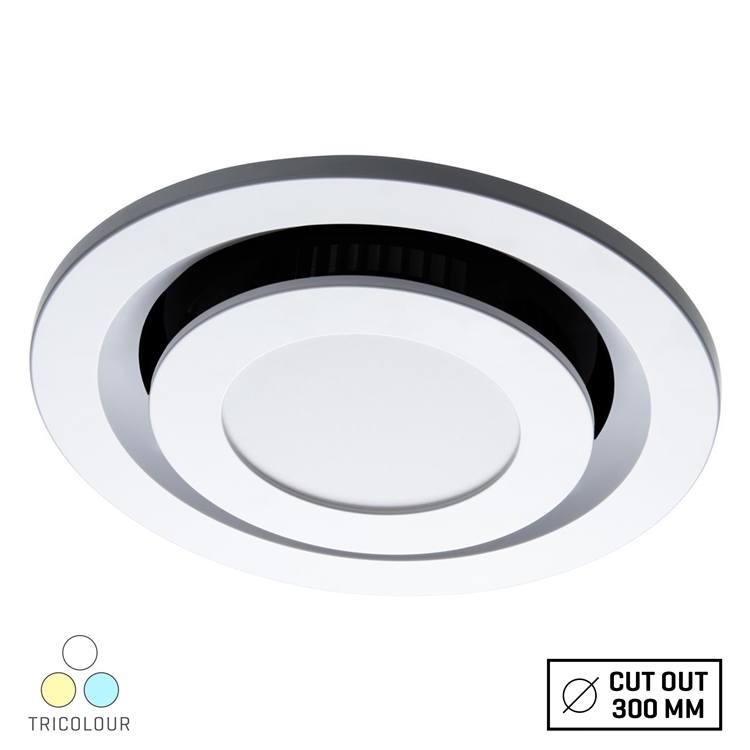

Voltex® LED Exhaust Fans are ideal for medium to large sized bathrooms and laundry applications and have the benefit of providing light and ventilation in one complete fitting. The powerful 80w centrifugal extraction fan gives high performance, and has a 150mm diameter exhaust duct spigot.
Tri-colour adjustment: The user can change the light colour as desired: NOTE: THERE HAS BEEN A RECENT CHANGE
After B211115: (Sold mid 2022 onwards) - use the tri-colour switch on the back of the light panel.
Before B211115: With the LED on, perform a fast off/on switch action. Repeat between the three colour options.
Light and Fan can operate off separate switches, or simply loop the terminals on the product to operate off one switch.
Features:
- White Finish
- Powerful 366m³/hr airflow (tested to ISO 5801)
- 10W LED Tri-Colour panel light with 730lm output
- Draft-stopper included
- Flush Mounted, with Mounting brackets for easy installation
- 3 Year Warranty from date of purchase
- Not supplied with flex lead and plug
- Suits 150mm ducting (not included) - 6m (FD6150) lengths available
Note: LED light is non-dimmable, however motor speed can be turned down [if reduced airflow/noise is necessary] using a capacitive fan speed-controller.
Product Diameter Ø | 326mm |
Installation Cut-out Ø | 300mm round |
Fan Duct Diameter Ø | 150mm |
Volts | 220-240V AC |
Hz | 50 |
IP Rating | IPX2 |
Airflow (Tested to ISO 5801) | 366 m3/ H (102 L/Sec) |
Fan Motor Power | 80W |
LED Power | 10W |
Light Colour | 2700K 3600K 5600K |
Light Output | 730lm (measured at 3600K) |
Max ceiling thickness: 16mm
Note: Not supplied with flex and plug lead.
