*Not suitable for Voltex LED Downlights*

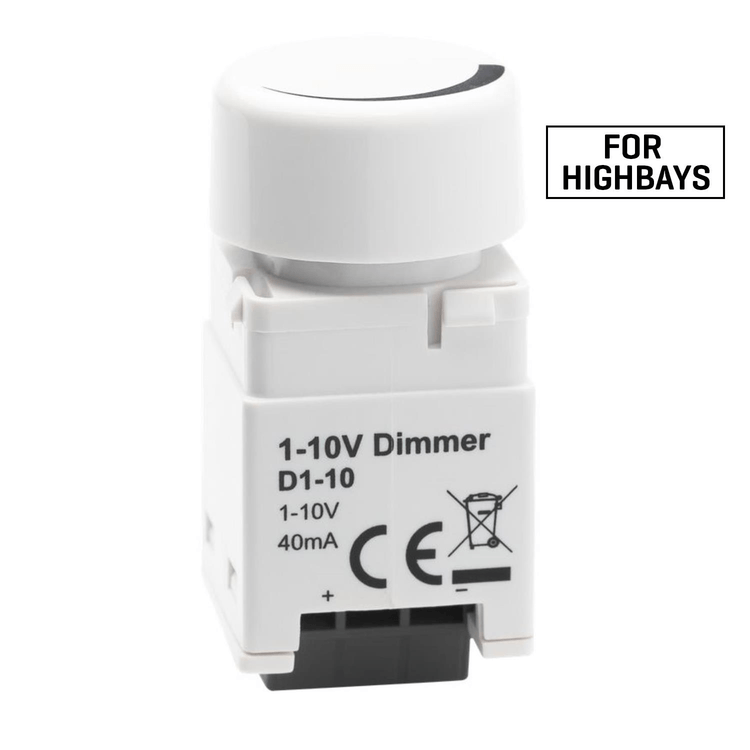

 1-10V dimmer

• For use with LED drivers complete with 1-10Vdc (or 0-10Vdc) control connection
• 40mA
• Dimming Range 10-100%
• Compatible with Voltex High Bay lighting range
• Controls up to 30 Voltex LED High Bays
• Minimum brightness setting
• Dimensions: 23x 23 x 49mm
• White dimmer knob only

Notes:

• Do not connect Mains Voltage to this product
• A dedicated control cable with + and – connections is required (See the wiring diagram for further details).
• Voltex Highbay LV output: Purple: "+" , Pink or Grey: "-"
• This product provides dimming only. Light fixtures require a separate 240Vac switch for ON/OFF control (See the wiring diagram for further details).
