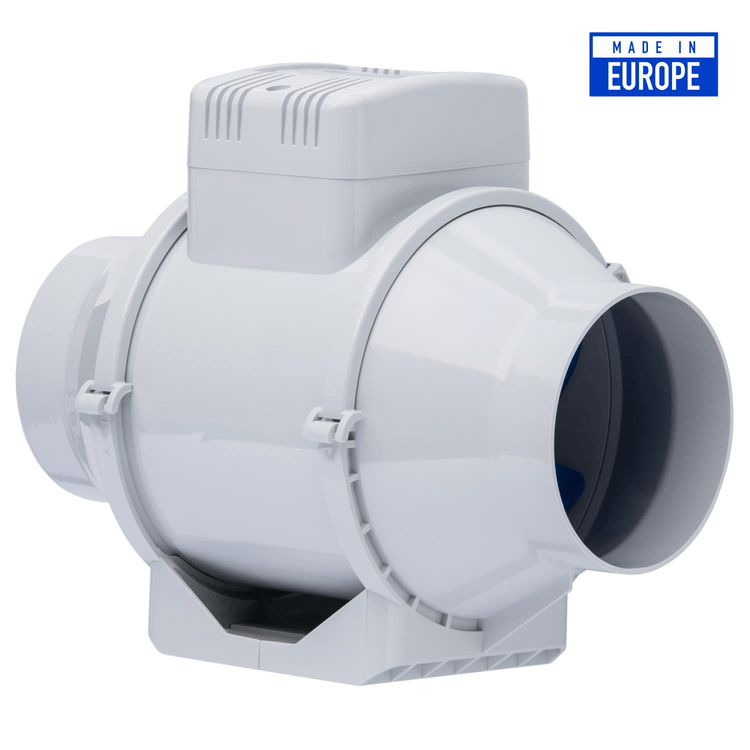

The range of MF mixed flow in-line fans are the perfect combination of high performance and low noise with space-saving design. Ideal for supply and extraction of offices, bathrooms, toilets, laundries, and ensuites in apartments, hotels, homes and commercial buildings.
Features
- Comes complete with 1.2m flex lead and plug.
- Easy and space-saving installation from the compact design and straight-through flow
- Simple in-line fitting for anywhere in the ducting
- Two speeds with switch [LO-OFF-HI] prewired. (Can be extended to remote wall switch if required)
- Long life ball bearings designed for 40,000 running hours
- Trouble-free maintenance and cleaning without disassembling the ducting by removing the unit from its frame
- Fan unit with terminal box can be rotated to any position
- Integrated mounting frame for easy installation on wall and ceiling
Speed | Min | Max |
---|---|---|
Voltage [V] | 240 | 240 |
Frequency [HZ] | 50/60 | 50/60 |
Power [W] | 21 | 33 |
Current [A] | 0.11 | 0.21 |
Maximum air flow[m3/h (l/s)] according to ISO5801 | 145 (40) | 187 (52) |
RPM | 2180 | 2385 |
Sound pressure level at 3m[dBA] | 33 | 38 |
Max transported air temperature [ºC] | +60 |
IP rating | IPX4 |
