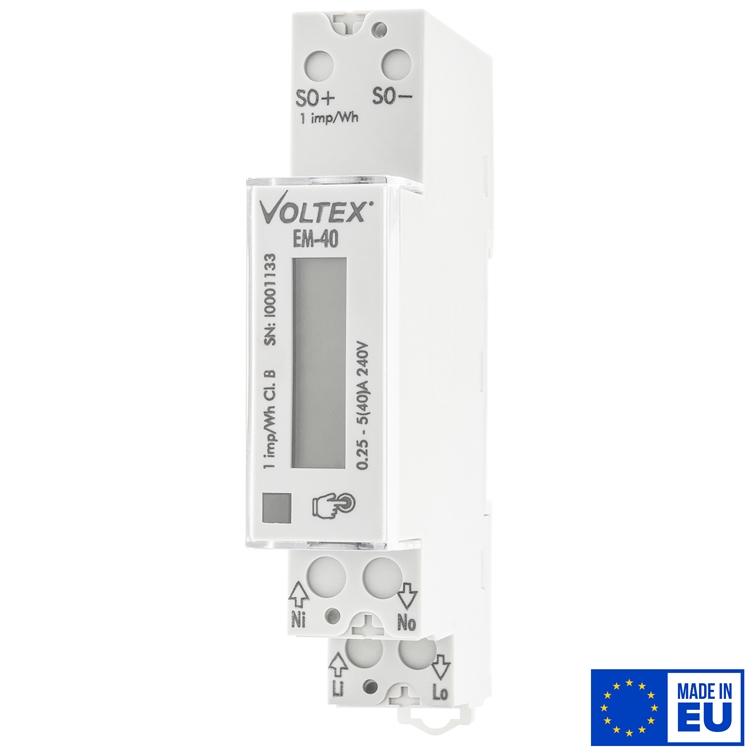

The single-phase energy meter equipped with a capacitive touch button that allows the user to scroll measurements, settings, etc. and includes a LED backlight for better visibility.

Calculates active/reactive/apparent power and energy, current, voltage, frequency, power factor, power angle, and frequency from the measured signals. This meter can also perform basic harmonic analysis (THD-U, THD-I). This enables a quick overview of harmonic distortion either coming from a network or generated by the load.

The meter is equipped with a pulse output for connection to 3^rd party devices. Red LED flashes to indicate load, or is steady ON when no load.

NEUTRAL CONNECTION: Neutral IN and Neutral OUT terminals provided, however a single 'reference neutral' connection to either terminal will also function correctly.

Displayed parameter will stay set where you choose to scroll to -displaying AMPS or KWH etc.

Main features

• Single-phase direct connected DIN-rail mounting meter
• Bidirectional energy measurement -shows IMPORTED and EXPORTED kWh
• Maximum current: 40 A
• TOUCH BUTTON ON FRONT SCREEN TO SCROLL THROUGH THE VALUES
• Backlight for better visibility
• Displays the following values (tap the touch button to scroll to the next value):
  • kWh from grid and kWh to grid
  • power (active/reactive/apparent)
  • voltage
  • current
  • frequency
  • power factor
  • power angle
  • active tariff (option)
  • THD of voltage
  • THD of current
• Pulse output (1000imp/ kWh)
• DIN-rail mounting
• Max ambient operating Temperature: 55C
• 1 DIN module wide
