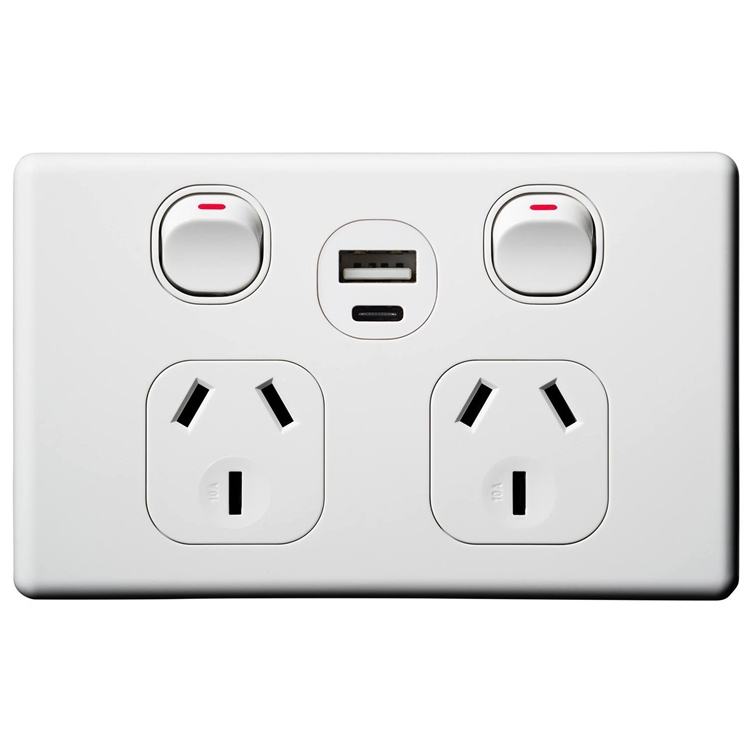

Classic Double Power Outlet 250V 10A with A and C-type USB Outlet

Description
Specifications
Download

CPP2HUSB

Classic Series.
Now in Shuttered Plus.

The Original Vertical Double GPO in premium gloss white features a perimeter-style plate with radiused corners and durable UV-stabilised construction. Generous terminals support easy wiring. Backed by a 25-year warranty. Now in a safer Shuttered design.

Safer by design

Integrated shuttered protection

Reduces the risk of accidental contact with live parts — particularly in family homes and shared environments where safety matters most.

Less guesswork

Side windows on
every GPO grid

Improved screw visibility during install for faster, cleaner alignment.

Cleaner retrofits

Taller cover plate

Extra 3 mm helps hide old paint lines and wall marks, reducing cosmetic rework.

Easier wiring

Larger cage terminals with captive screws

Faster, more secure terminations, especially with multiple or stiffer conductors.

Built to last

Enhanced UV
resistance

*Based on internal UV lab testing comparing colour change (ΔE) of Shuttered Plus versus Standard GPOs after three weeks of controlled, accelerated UV exposure.

Know before you install

Cut-out size

57mm per outlet (Shuttered Plus) vs 50mm per outlet (Standard)

Allow extra clearance when pre-cutting or working with cabinetry.

Plug engagement

Shuttered Plus outlets feel firmer

Increased insertion force is normal and may influence suitability in low-risk settings.

Colour tone

Warmer white on Shuttered Plus

Enhanced UV-resistant materials give Shuttered Plus a subtly warmer tone.

Testing access

Shuttered Plus engages neutral first

Shutter must be engaged via the neutral first to access active and earth.

Dimensions of components protruding into the wall: 50mm height x 73mm width x 34mm depth

Mounting Centre	84mm
Plate Thickness	13mm
Recess Depth	34mm
Plate size	118mm (W) x 73mm (H) x 47mm (D)
USB Output	1x C-type port. 5Vdc 3A, 9Vdc 2A, 12Vdc 1.5A 1x A-type port, 5Vdc 2.1A Maxiumum combined output 4.2A
Rated Voltage	250V 10AC
Terminals Suit	4 x 2.5mm² cable
Compliance	AS/NZS 3112 with AS/NZS 3100 AS/NZS 61558.2.16 with AS/NZS 61558.1 AS/NZS CISPR 32 (EMC)
