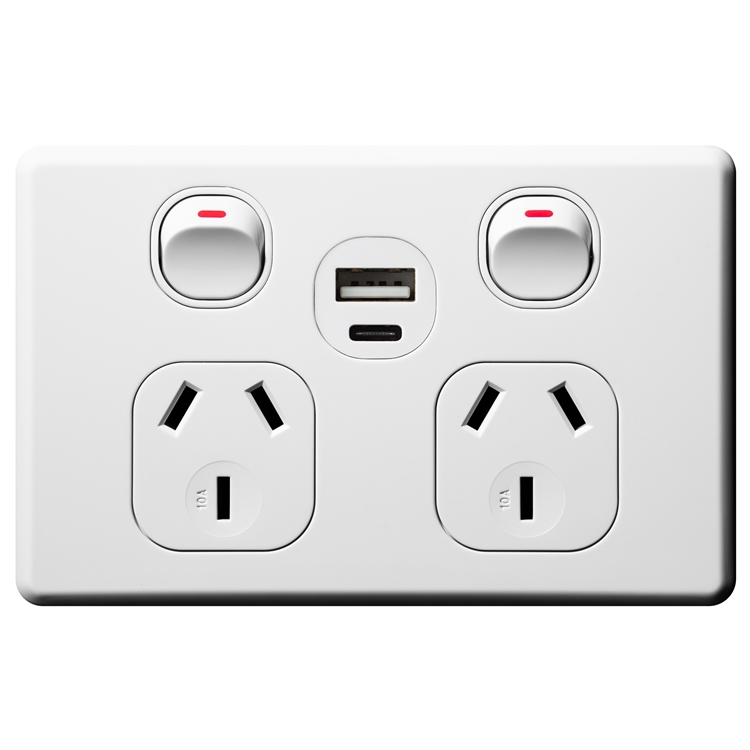

The new Shadowline USB GPO with fast-charge C-type USB port has arrived!
Featuring adaptable voltage charging, it is perfect for not only fast charging of mobile phones, but iPads and tablets, headphones, bluetooth speakers and more! The C-type port is becoming standard across a number of devices so chosing this product will ensure your customer is set for the future.
- Exceeds all relevant Australian & New Zealand Standards
- 1x C-type port. 5Vdc 3A, 9Vdc 2A, 12Vdc 1.5A
- 1x A-type port, 5Vdc 2.1A
- Maximum combined output 4.2A @ 5V. Fast charge will not work with two devices plugged in.
- Standard Gloss Finish.
Mounting Blocks:
The product supports the following fast charge protocols:
- Quick Charge 3.0+ / 3.0 / 2.0
- USB Power Delivery (PD) 2.0 and 3.0
- Xiaomi Charge Turbo 27W protocol
- Huawei FCP/SCP/HVSCP protocol
- Samsung AFC protocol
- Apple 2.4A charging specification
- USB BC1.2 DCP
- Double socket outlet with individual single pole rocker switches - shallow plate
USB Output | 1x C-type port. 5Vdc 3A, 9Vdc 2A, 12Vdc 1.5A 1x A-type port, 5Vdc 2.1A |
Maximum combined output | 4.2A |
Mounting Centre | 84mm |
Plate Thickness | 7mm |
Recess Depth | 40mm |
Plate size | 115mm (W) x 74mm (H) |
Rated Voltage | 250V 10AC |
Terminals Suit | 4 x 2.5mm² cable |
Compliance | AS/NZS 3112 with AS/NZS 3100 AS/NZS 61558.2.16 with AS/NZS 61558.1 AS/NZS CISPR 32 (EMC) |
