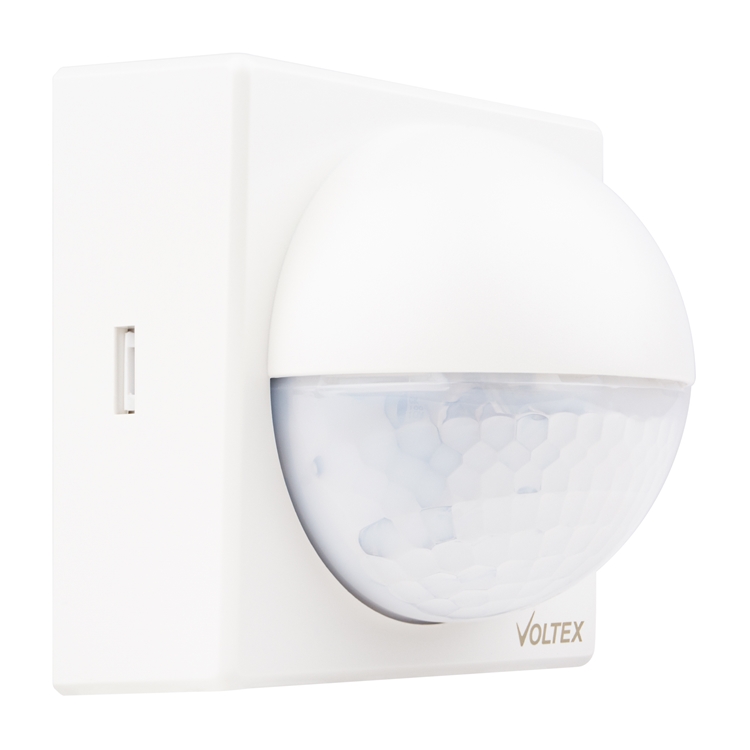

Compact outdoor motion sensor with light level adjustment
- Low-profile, compact outdoor sensor
- IP55
- 79mm (W) x 79mm (H) x 69mm (D)
- Available in white or black
- 12m range (across sensor, temperature dependant)
- 180-degree detection field
- Suitable for installation heights between 2.5 and 4m
- Can be used in conjunction with a Voltex 3-position switch (see installation guide for details)
- 400W maximum load (LED lighting)
- 7-year Warranty.
Operating Voltage | 230 V AC |
Frequency | 50 Hz / 60 Hz |
Standby Power | < 0.5 W |
Protection Rating | IP 55 |
Operating Temperature | –25 °C to +45 °C |
Lighting Level Adjustment | 2 Lux to 200 Lux, plus light level disable |
Auto OFF time adjustment | 2 seconds to 20 seconds and 2 minutes to 30 minutes |
Warm up time | 40 Seconds |
Installation Heights | 2.5m to 4m |
Detection Range (see diagram) | Across sensor: 12m maximum Towards Sensor: 5m maximum Note: Detection range can vary, depending on the ambient temperature |
Detection Angle | 180° |
Maximum Load | LED: 400W Incandescent: 2300W |
