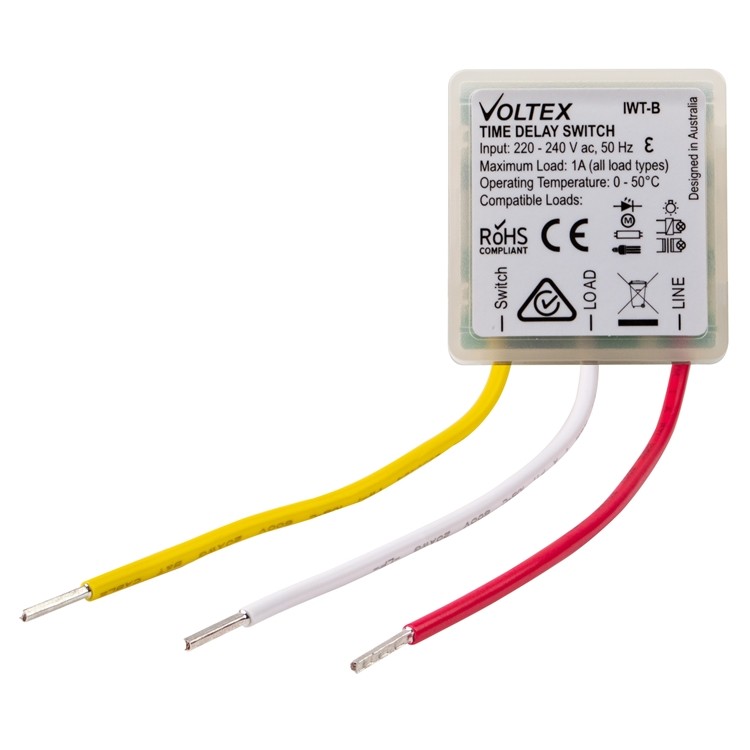

When used with a momentary (bell press) switch mechanism – Press the switch, the connected load switches on. The load switches off automatically after the time out period (5, 15 or 30 minutes).
When used with standard switch mechanism – Turn the switch on, the connected load turns on and stays on while the switch is on. When the switch is turned off, the load stays on for the time-out period (5, 15 or 30 minutes), then switches off automatically.
- No Neutral connection required at the timer
- For applications such as pantries, stairways, and storerooms
- Designed to be installed behind a wall plate (wall plate not supplied with the timer)
- Delay can be set to 5, 15 or 30 minutes (15 minutes default)
- Dimensions 39mm x 41mm x 12mm
- 7 Year Warranty
- Maximum Load 1A, Minimum Load 2.5W
| Supply | 220 – 240V, 50Hz |
| Max Load | 1A (all load types) |
| Min Load | 2.5W |
| Compatible Load Types | Resistive loads Inductive load (contactor coil) Tungsten filament lamp load Externally ballasted lamp load (LED, CFL or Fluorescent) Self-ballasted lamp load (LEDi or CFLi) Small motor load – M.1 (exhaust fan typical) |
| Timer Settings | 5 minutes 15 minutes (default) 30 minutes |
| Switch Input type | Momentary push-button switch |
| Load Switching type | Semiconductor switching device |
| Dimensions | 39 x 41 x 12 mm |
| Weight | 20g |
| Ingress protection | IP30 |
| Wire length | 110 mm |
| Ambient Operating Temperature | 0 to 50°C |
| Ambient Storage Temperature | -10 to 70°C |
| Humidity | 0% to 95% RH non-condensing |
| Fault Protection | Open circuit Short circuit Overload Over temperature |
| Material | Flame retardant polycarbonate |
