Improved design as of Dec 2023:
- Identical to single pole Classic CPP2H (shares the same cover plate, can be fitted with SS plate)
- Improved contacts and switch design
- Larger terminals (from 5.4mm to 5.7mm diameter)
- Captive Terminal Screws
- Combination PH2/SQ1 screwhead

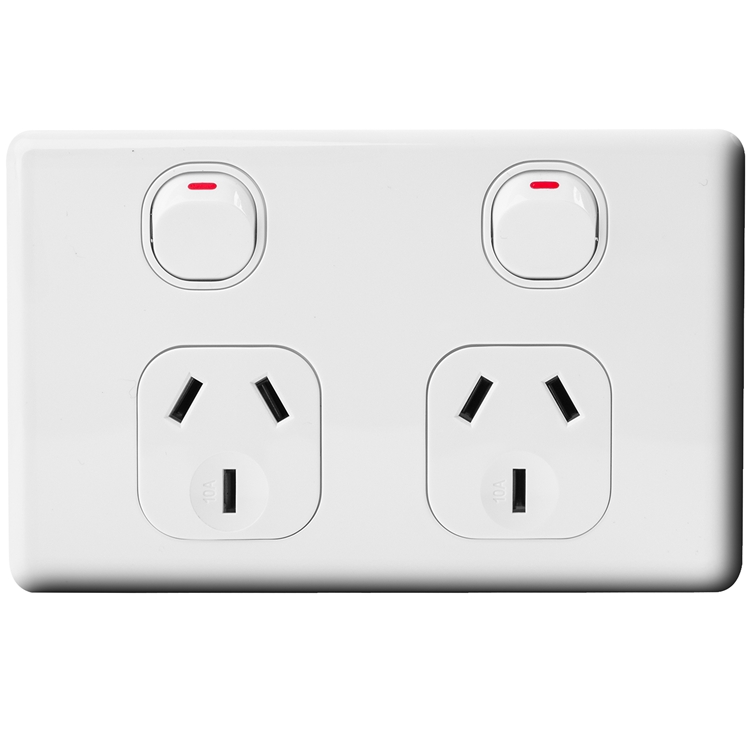

- Double power outlet, Double pole for application in transportable buildings and vehicles
Plate Size | 118mm (W) x 73mm (H) |
Mounting Centre | 84mm |
Base Projection | 12.5mm |
Pole Configuration | Double Pole |
Rated Voltage | 250V 10AC |
Terminals | 4 x 2.5mm2 cable |
Approval Standard |
