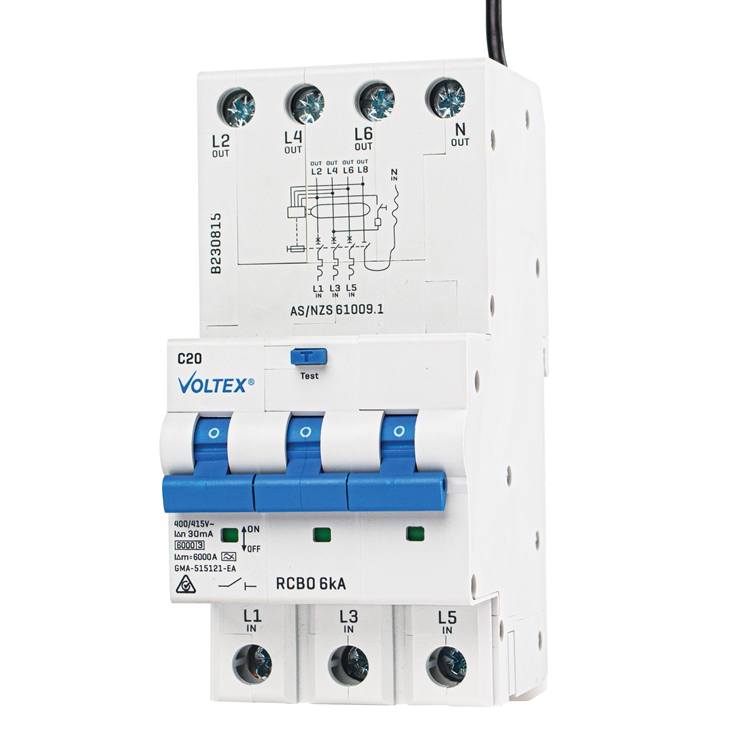

Switches Actives and Neutral and fed by a 800mm Neutral tail (a spare bootlace crimp is supplied).
Only 3 poles wide (54mm), this compact RCBO is perfect for replacing 3 pole MCBs in many switchboard upgrades, and can also be used on 3-phase-3-wire circuits (eg. motor without neutral), dual-phase appliances, etc. Seek guidance from equipment manufacturer on recommended residual current protection device type, as EMC filtering (on inverter drives etc) can cause unwanted tripping in some applications.
Fits Voltex WSBS and C66 range. Fits SBS range and SBF-12/18 way switchboards, when mounted with the terminal bar at the bottom . Fits CUBO 12/18way boards, and 24/36way boards when mounted on the uppermost DIN rail. (Will NOT fit into SC-3 or SC-4 surface covers.)
ESV Compliance: Exempt (RCBO over 110mm length)
Width | 54mm (3 standard modules) |
Rated current (In) | 6A, 10A, 16A, 20A, 25A, 32A, 40A, 50A, 63A |
Rated Voltage (Un) | 400/415VAC (NOT suitable for 480v single phase SWER) |
Rated Frequency | 50/60 Hz |
Number of Poles | 3P+N |
Poles Switched | 3x Active poles & Neutral |
Overcurrent Tripping Charactoristics | 'C' curve (5-10x In) |
Earth-leakage Protection Class | 'A' Type |
Breaking Capacity | 6kA |
Rated Residual Current | 30mA |
ESV Compliance | Exempt (RCBO over 110mm length) |
Maximum Cable Size | Line- 25mm2 / Load- 25mm2 |
Terminal Tightening Torque | 2Nm |
IP Degree | IP20 |
Mounting | Standard 35mm Din Rail |
Length of Neutral Lead | 800mm (spare crimp ferrule supplied) |
Suitable Busbar | BUS-3P-6M> |
|
